Proper metal roofing overlap is a vital part of building a durable and weather-resistant roof. Metal roofs can last for decades with minimal maintenance if you install them correctly. The right overlapping technique will give a water-resistant seal that stops wind uplift and keeps the roofing system structurally stable.
Most standard installations need metal roofing panels to overlap by at least one groove horizontally and six inches vertically. The requirements change based on your local weather conditions. A 6-inch overlap works well in areas with light rainfall. Areas that get heavy rain and strong winds need 8 to 12 inches of overlap. Steel panels that are 38 inches wide with 4 ribs need to overlap the previous panel by 1 rib. Your roof will work effectively for years to come if you know how to overlap metal roofing lengthwise, handle corrugated metal roofing, and determine the right overlap for your specific needs.
Why Overlapping Metal Roofing Matters
Successful metal roof installation depends heavily on proper overlapping techniques. Understanding why correct metal roofing overlap matters extends beyond simple installation knowledge and affects your roof’s performance for decades.
Metal panels must overlap precisely to create a watertight barrier. Inadequate overlap allows water to seep between panel seams, which leads to rust, mold growth, and structural damage. Water can wick under panels through capillary action when even tiny gaps exist in the overlaps. These issues often result in costly repairs and serious structural problems.
Properly overlapped panels also deliver exceptional wind resistance. Metal roofs with correct overlapping can withstand winds reaching 140 miles per hour, and sometimes even 160 mph. This protection becomes vital in hurricane-prone areas where poor installation could let strong winds detach the panels.
The overlap also lets metal panels expand and contract naturally with temperature changes. This flexibility stops panels from warping or becoming loose over time.
Your roof’s lifespan depends on the overlap’s quality. A metal roof with proper overlap can last 50 years or more with minimal upkeep. Poor overlapping techniques often cause premature roof failure.
Panel overlap stands as the most significant element in metal roof installation. It determines whether your roof provides decades of protection or fails during its first major storm.

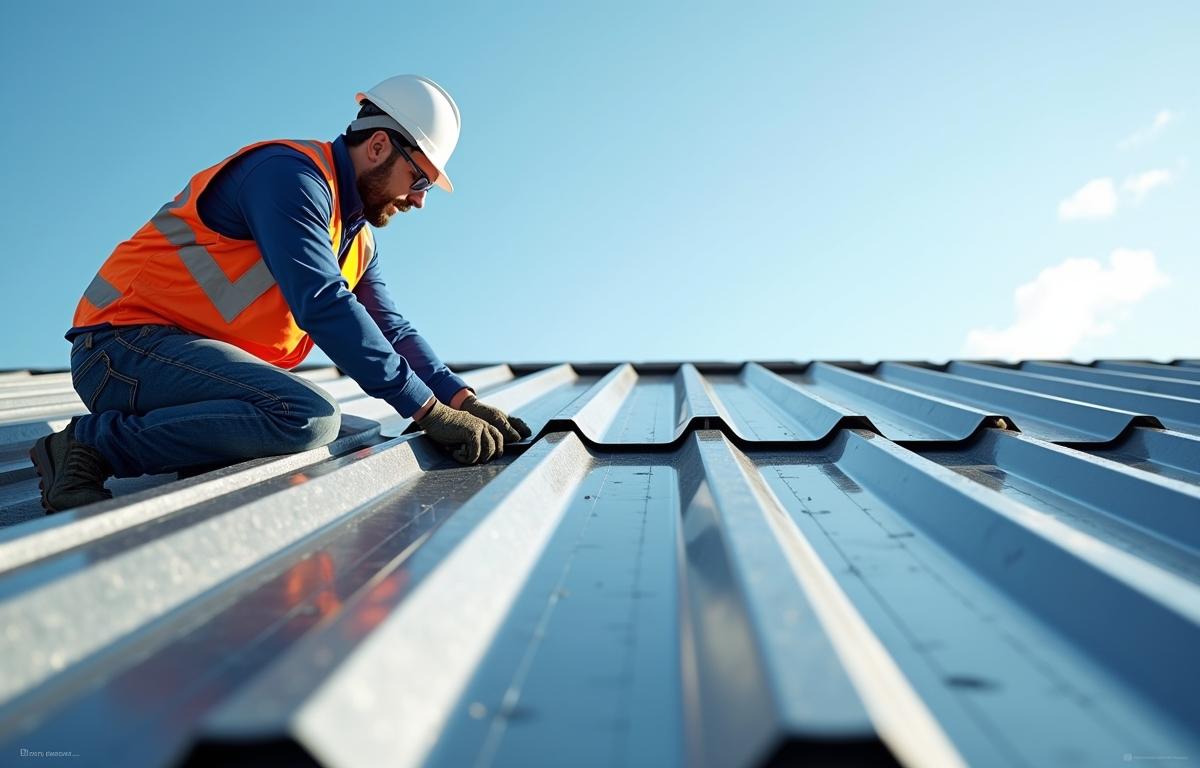

How to Overlap Metal Roofing Lengthwise
Roofers need to overlap panels lengthwise when a roof’s length exceeds standard panel sizes. This method, known as “end lapping,” creates a waterproof barrier that runs continuously along the roof slope.
A minimum end overlap of 6 inches works well for standard installations. The roof’s pitch determines the overlap measurement—roofs with slopes steeper than 10° need 150mm (about 6 inches), while flatter roofs require 200mm (about 8 inches) or more. Areas with heavy rainfall or strong winds might need 8-12 inches of overlap to ensure maximum protection.
Here’s how to overlap metal roofing lengthwise effectively:
- Start at the eaves and work upward toward the ridge
- Install panels opposite to widespread winds to stop wind-driven rain intrusion
- Apply two parallel rows of butyl tape sealant between panels
- Secure with proper metal roofing fasteners, using screws with EPDM rubber washers
- Space fasteners every 12-18 inches along panel seams
Poor overlap measurement stands out as one of the most common installation errors. Insufficient overlap causes leaks, while too much overlap wastes materials and adds unnecessary weight.
Professional installers often use the “Block-Cut” technique—flipping offcuts from hip ends into opposite hips. This method can reduce material waste from 10-15% to less than 5%.
How to Overlap Corrugated Metal Roofing
Metal roofing with corrugated panels needs specific overlapping techniques to create a weather-tight seal. The unique ridged design just needs careful attention to arrange panels and fasten them properly.
The side overlaps of corrugated panels should overlap by 1.5 to 2 full corrugations. This measurement will give proper water runoff and stops leaks. Your first panel should extend about 10 centimeters (4 inches) off the roof edge.
Here’s what you need to know about end overlaps (at the time you splice panels from eave to ridge):
- Keep a minimum overlap of 6 inches between panels
- Start from the bottom up so water flows naturally over seams
- Put butyl tape along the middle of the splice to waterproof
The proper arrangement affects your coverage calculations. A 39-inch wide panel gives only 34.67 inches of actual coverage after the side lap.
Butyl tape is a vital part to waterproof seals. Put it along the second high seam of the lower roofing panel before overlapping. Then fasten the panels at the ridges instead of valleys so water doesn’t pool around screw holes.
Seal any exposed seams with roofing cement or flexible sealant. This step matters because gaps smaller than 1.5 corrugations let wind-driven rain get through the roof.
Conclusion
The life-blood of a lasting, weather-resistant installation lies in proper metal roof overlapping. Veteran roofers with decades of experience all say the same thing. You’ll face early roof failure if you cut corners on overlapping. That tiny difference between a 6-inch and 8-inch overlap during installation could mean your roof lasting 50+ years or failing in the next big storm.
Your local climate determines the specific requirements you’ll need. Homeowners in rainy areas should definitely go for 8-12 inch overlaps. Those in drier regions might find 6 inches works just fine. The type of panel makes a big difference too. Corrugated panels just need their own approach – 1.5-2 full corrugations of side overlap to channel water properly.
These methods for lengthwise overlapping and corrugated metal installation come from years of successful projects. You should follow these techniques carefully. This includes the right way to apply butyl tape and place fasteners. These little details separate a professional job from one that’ll give you headaches later.
Metal roofing lasts way longer than traditional materials. But this advantage only holds up when you install it correctly. A metal roof with proper overlapping protects your home for decades with minimal upkeep. The original time spent measuring precisely and overlapping correctly saves thousands in possible repairs later.
My experience installing metal roofs in all types of climates over 40 years shows one thing clearly. Nothing matters more than proper overlap in metal roofing installation. Once you become skilled at this basic technique, your roof will handle whatever weather comes along.
